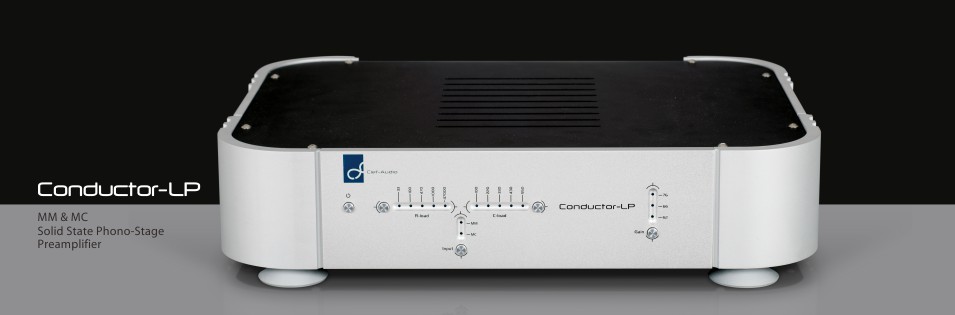

Clef Conductor LP

Overview

Conductor-LP is a solid-state phono preamplifier.  It plays both MM (Moving Magnet) and MC (moving Coil) - Standard Output and Low Output without the need of Step-Up Transformer

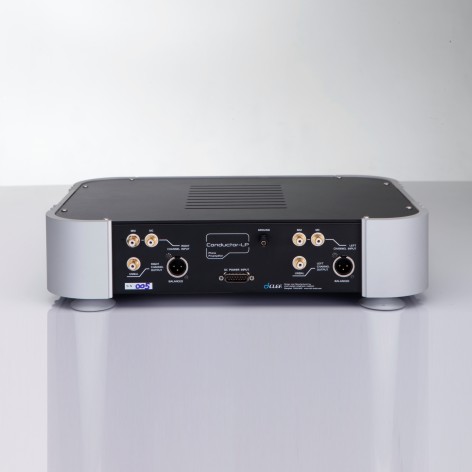

Conductor-LP is designed to accept 2 inputs simultaneously (MM + MC) and desired input can be chosen by selector switch on front panel.  The output is provided to both Unbalanced (RCA) and Balanced (XLR).


Technology

Low Noise High Gain Design Circuit:   The Conductor-LP has a very accurate RIAA equalization curve. This curve is accurate to better than 1/10 dB over 10 octaves.
The accuracy of this curve does not vary with an adjustment change of gain or cartridge loading.
Conductor-LP features gain adjustable from between 40dB and 76dB; a range sufficient to allow successful operation of not only high output moving magnet cartridges, but also the lowest output moving coil cartridges without the use of an auxiliary step-up transformer.

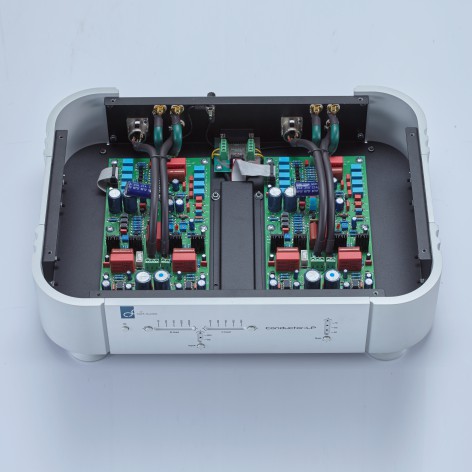

Dual mono design topology:   This gives the better isolation between channels.  Soundstage imaging is improved, offering true soundstage width and depth.  Instrument placement and layering are more accurate.


Technical Specification

Gain:   40 dB @ 1 KHz (MM)
           52 dB @ 1 KHz (MC)
           62 dB @ 1 KHz (MC)
           72 dB @ 1 KHz (MC)
RIAA Response:   +0.1 dB 20-20 KHz
Distortion:   < .05 % THD @ 20 volts balanced @ 1 KHz
Maximum Output:   20 volts rms.
Output Impedance:   150/150 ohms
Input Impedance: 47 Kohm 0-550 pF (MM)
                           33 ohm - 47 Kohm (MC)
Unweighted Noise:   -90 dB ref. 10 mV input (MM)
                              -81 dB ref. 1 mV input (MC)
Power Consumption:   32 Watts
Number of Chassis:   2
Dimension (WxHxD):   Main Unit: 432 x 100 x 320 mm.
                                 Supply Unit: 163 x 79 x 233 mm.
Weight:   Main Unit: 6.5 Kg, 8 Kg in shipping carton
               Supply Unit: 3 Kg, 3.3 Kg in shipping carton
