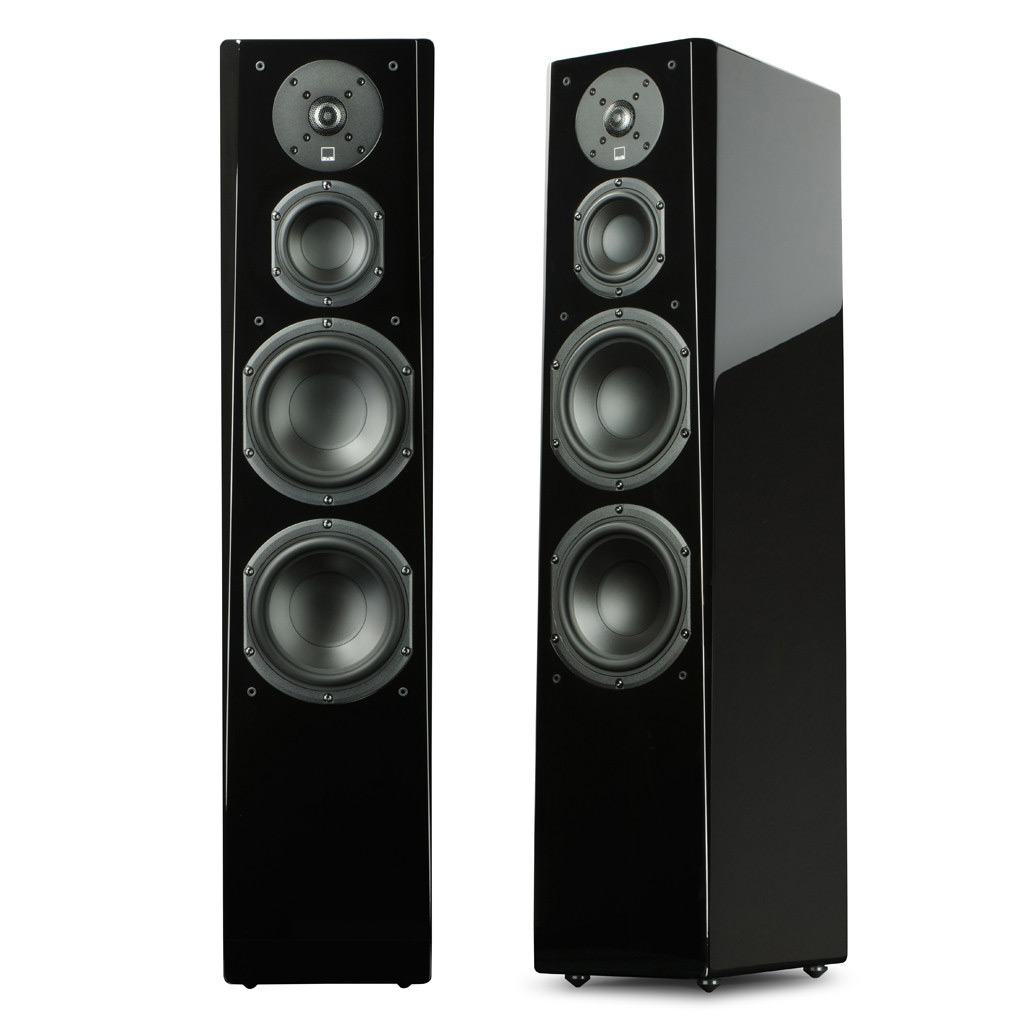

SVS Prime Tower

SVS Prime Tower

ลำโพงในซีรี่ย์รองของ SVS นั่นคือ Prime Series เหมาะใช้ในระบบ Home Theater ทั้งดูหนังและฟังเพลง

Specification

• Floor Standing Tower Loudspeaker
• Black ash and piano gloss black finish options
• 5-way binding posts
• Dual 1.7” wide-flared rear-firing ports
• Cloth grille with pin/cup retention system
• Elastomer stick-on bumper feet (adds 3mm to height)

• Spiked metal screw-in feet included - adjustable for level
• Cabinet Dimensions: 36" (H) X 8" (W) X 11.1" (D)
• Overall Dimensions: 36.6" (H) X 8" (W) X 11.6" (D) (includes grille and feet)
• Shipped Dimensions: 41.3" (H) X 14.1" (W) X 17.3" (D)
• Weight: 40.1 pounds
• Shipped Weight: 46.3 pounds
• FEA-optimized diffuser for airy and unveiled presentation
• Aluminum dome delivers exceptional transient response and exceptional stiffness/mass ratio
• Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
• Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
• Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
• Vented voice coil former minimizes air compression artifacts

DUAL 6,5” WOOFERS

• Long stroke motor and suspension for high output
• Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
• Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
• Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
• Vented voice coil former minimizes air compression artifacts
• 3.5-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
• Tapered woofer array optimizes the transition to the midrange driver and reduces vertical axis lobing
• Midrange-to-tweeter crossover: 2.1 kHz (12 dB/octave slopes)
• Top woofer (Combined Woofer) to midrange crossover frequency: 350 Hz (12 dB/octave slopes).
• Bottom woofer low pass frequency: 165 Hz (customized filter Q and slope)

Cabinet Specs

• Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
• Separate woofer enclosures with optimized port tuning frequencies for smooth and accurate bass response
• Acoustically transparent and FEA optimized grilles minimize diffraction
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
• FEA-optimized cabinet and bracing eliminates resonances
