SVS Ultra Bookshelf

SVS Ultra Bookshelf

ลำโพงในซีรี่ย์เรือธงของ SVS นั่นคือ Ultra Series ให้ความเป็นที่สุดในการดูหนัง

Specification

• Bookshelf Loudspeaker
• Real black oak veneer, piano gloss black, and gloss white finish options

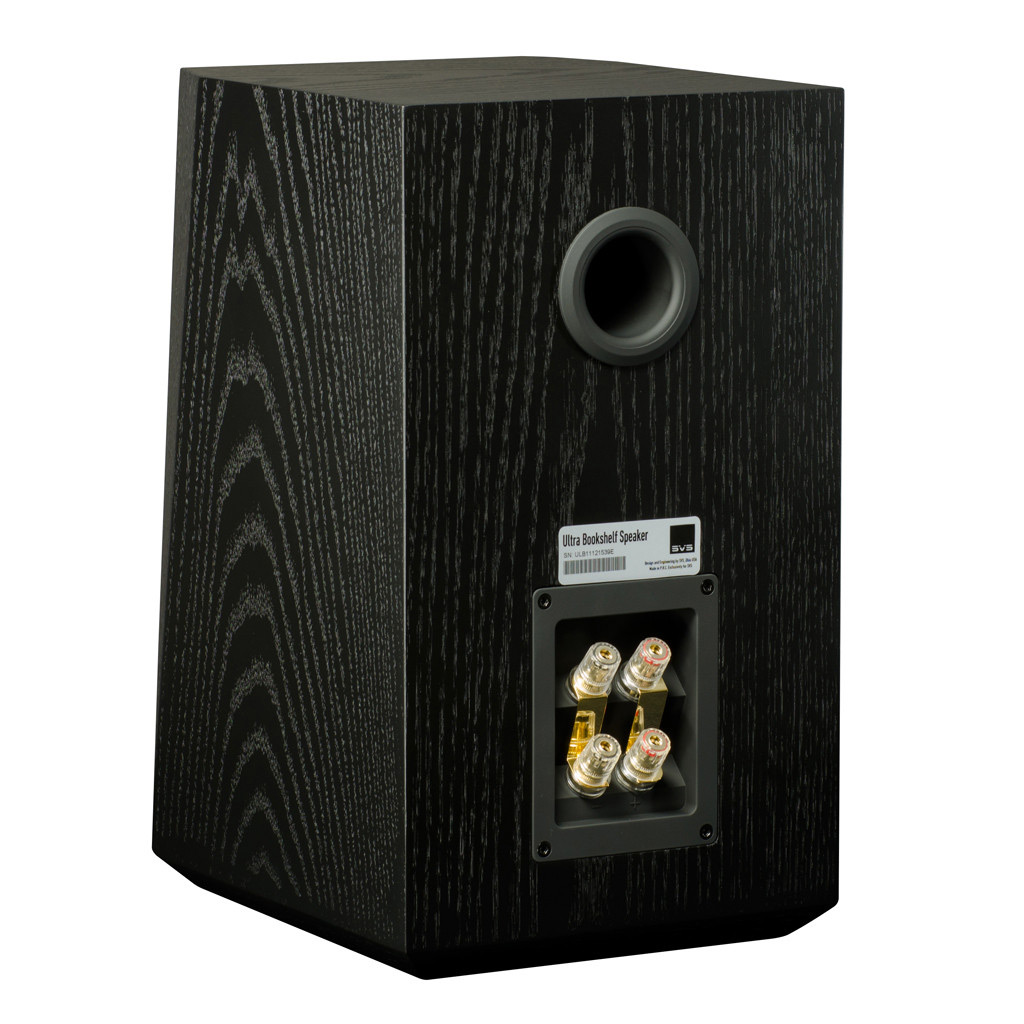

• Dual gold-plated 5-way binding posts
• 1.7” wide-flared rear-firing port

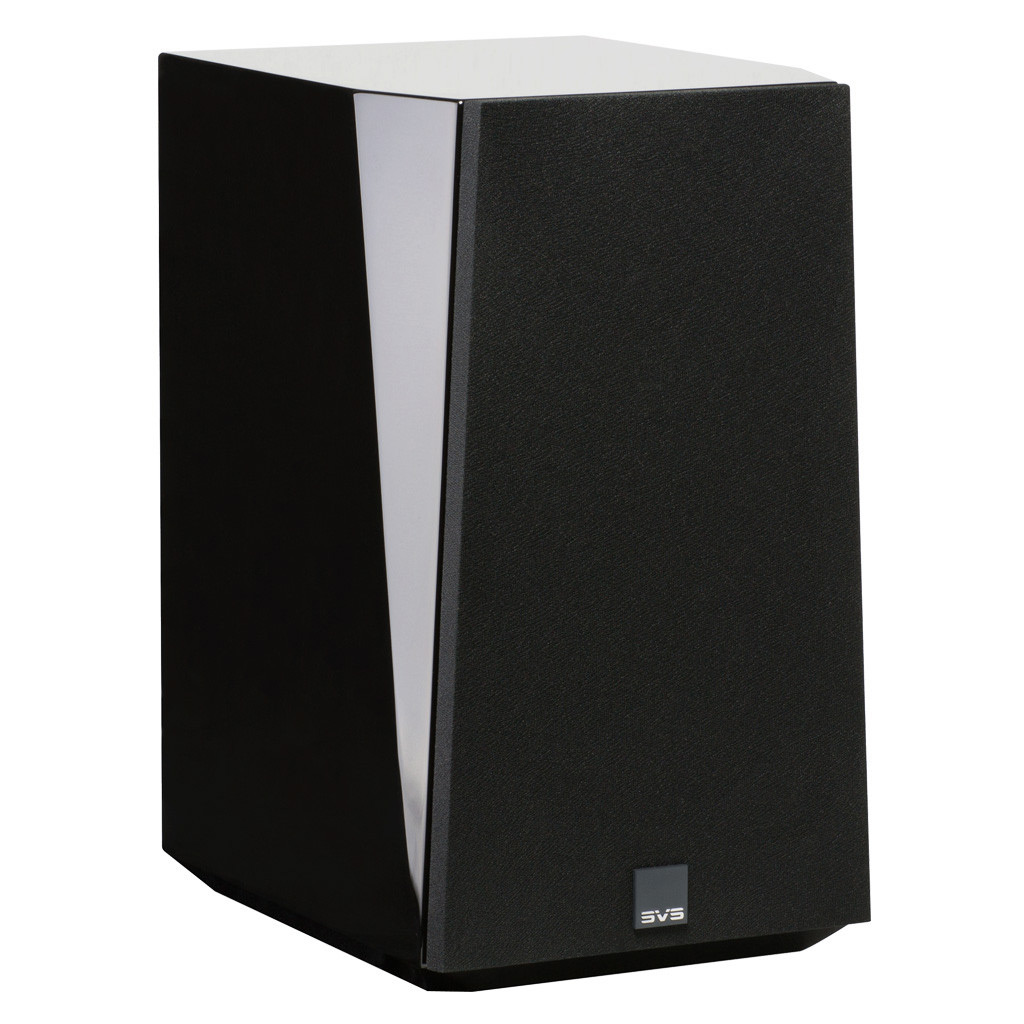

• Cloth grille with pin/cup retention system
• Elastomer stick-on bumper feet (adds 3mm to height)

• Cabinet Dimensions: 15” (H) x 8.5” (W) x 10.6” (D) (without grille)
• Overall Dimensions: 15” (H) x 8.5” W x 10.9” (D) (with grille)
• Shipped Dimensions: 24" (H) x 20" (W) x 14" (D)
• Weight: 19 pounds
• Shipped Weight: 42 pounds
• 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
• Crossover frequency and slopes optimized for excellent off-axis polar response, outstanding phase coherency, and total radiated sound power
• Tweeter-to-woofer crossover: 2 kHz

Cabinet Specs

• Acoustically transparent and FEA optimized grilles, wedge-shaped front baffle and flush-mounted drivers all contribute to reduced edge diffraction and improved on-axis high frequency response
• FEA-optimized bracing reduces cabinet resonances
• FEA-optimized diffuser for airy and unveiled presentation
• Aluminum dome delivers exceptional transient response and exceptional stiffness/mass ratio

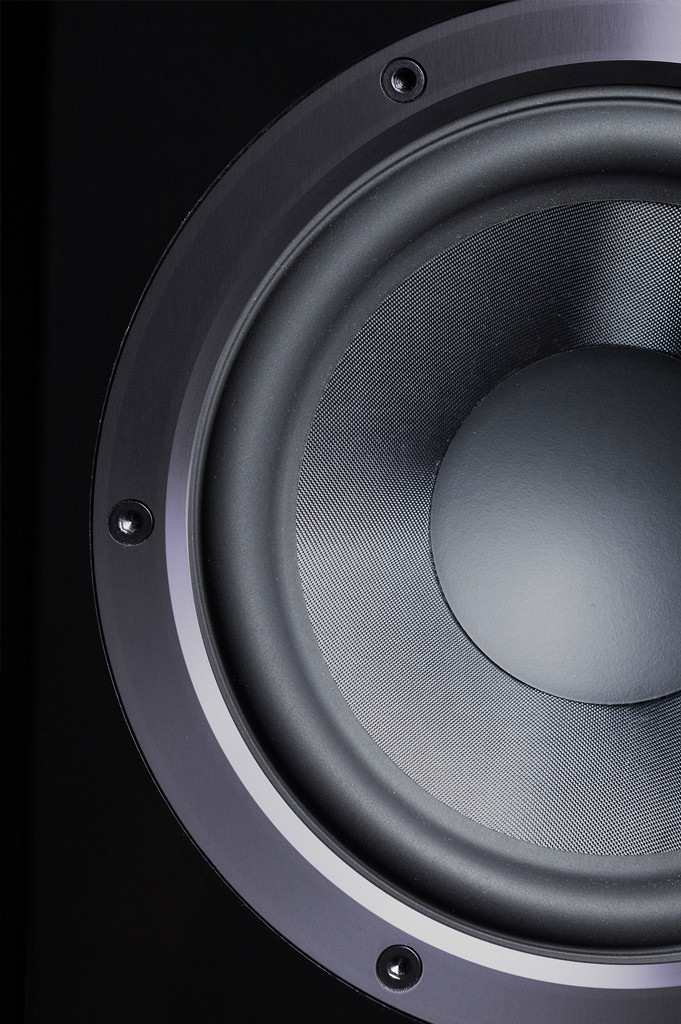

6.5” Woofers:

• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band.
• Aluminum shorting rings to reduce gap inductance and lower distortion
• Long stroke motor and suspension for high output
• Vented voice coil formers to minimize air compression artifacts at high drive levels
