SVS Ultra Center

SVS Ultra Center

ลำโพงในซีรี่ย์เรือธงของ SVS นั่นคือ Ultra Series ให้ความเป็นที่สุดในการดูหนัง

Specification

• Center Channel Loudspeaker
• Real black oak veneer and piano gloss black finish options

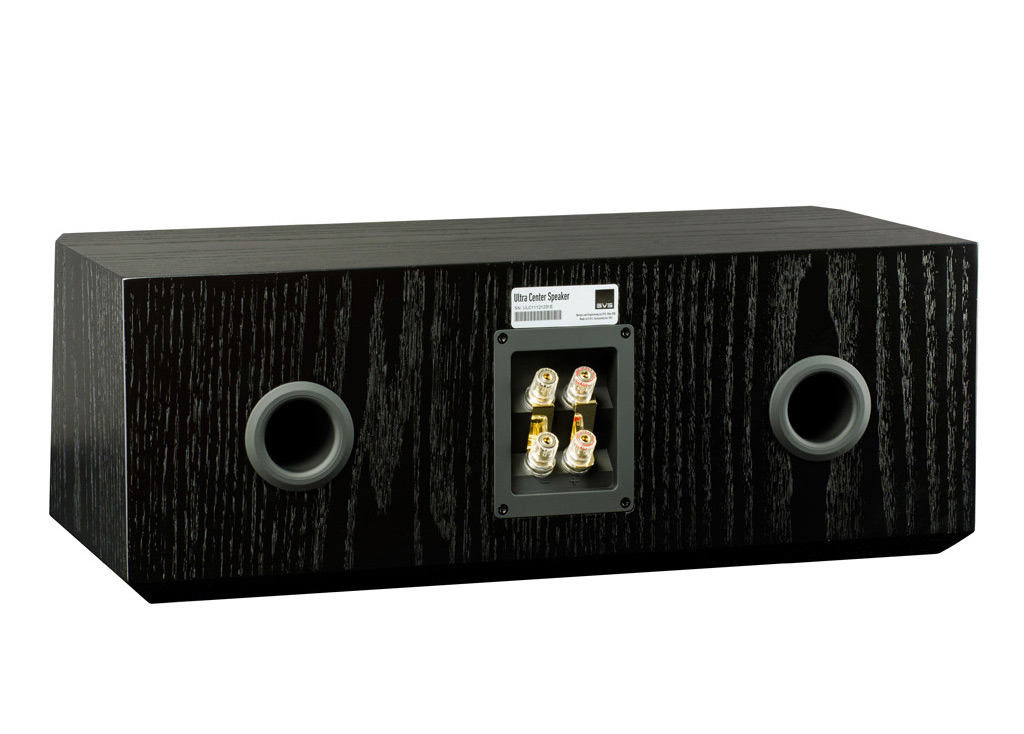

• Dual gold-plated 5-way binding posts
• Dual 1.7" wide-flared rear-firing ports

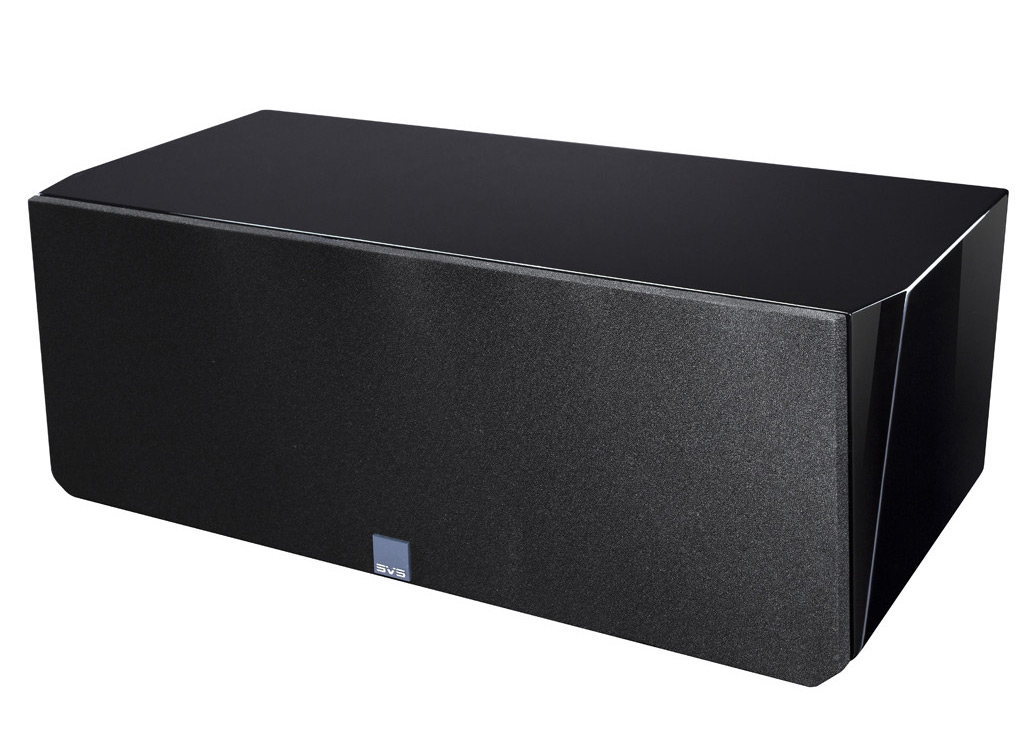

• Cloth grille with pin/cup retention system
• Elastomer stick-on bumper feet (adds 3mm to height)
• Cabinet Dimensions: 8.2” (H) x 22" (W) x 10.6” (D) (without grille)
• Overall Dimensions: 8.2” (H) x 22” (W) x 10.9” (D) (with grille)
• Shipped Dimensions: 14" (H) x 27" (W) x 15" (D)
• Weight: 31 pounds
• Shipped Weight: 35 pounds

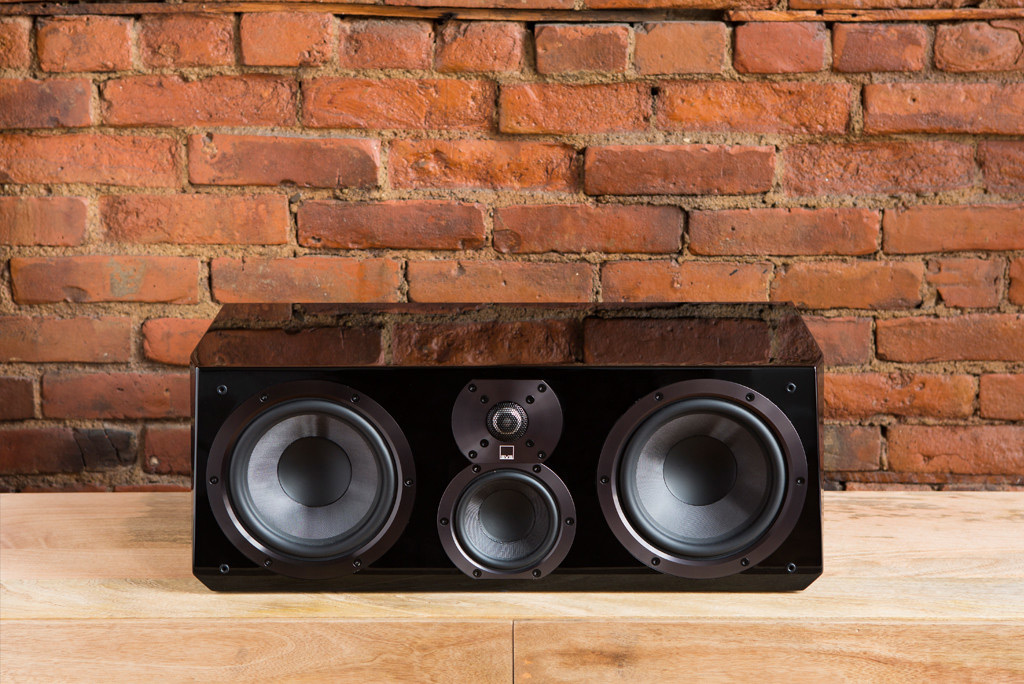

• Vertically aligned tweeter and midrange improves horizontal axis polar response, with reduced lobing and comb filtering
• FEA-optimized diffuser for airy and unveiled presentation
• Aluminum dome delivers exceptional transient response and exceptional stiffness/mass ratio
• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band
• Aluminum shorting rings to reduce gap inductance and lower distortion
• Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity
• Vented voice coil formers to minimize air compression artifacts at high drive levels
• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band
• Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
• Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity
• Vented voice coil former to minimize air compression artifacts at high drive levels
• 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
• Midrange-to-tweeter crossover: 2.2 kHz
• Midrange-to-woofer crossover: 500 Hz

Cabinet Specs

• Acoustically transparent and FEA optimized grilles, wedge-shaped front baffle and flush-mounted drivers all contribute to reduced edge diffraction and improved on-axis high frequency response
• FEA-optimized bracing reduces cabinet resonances
